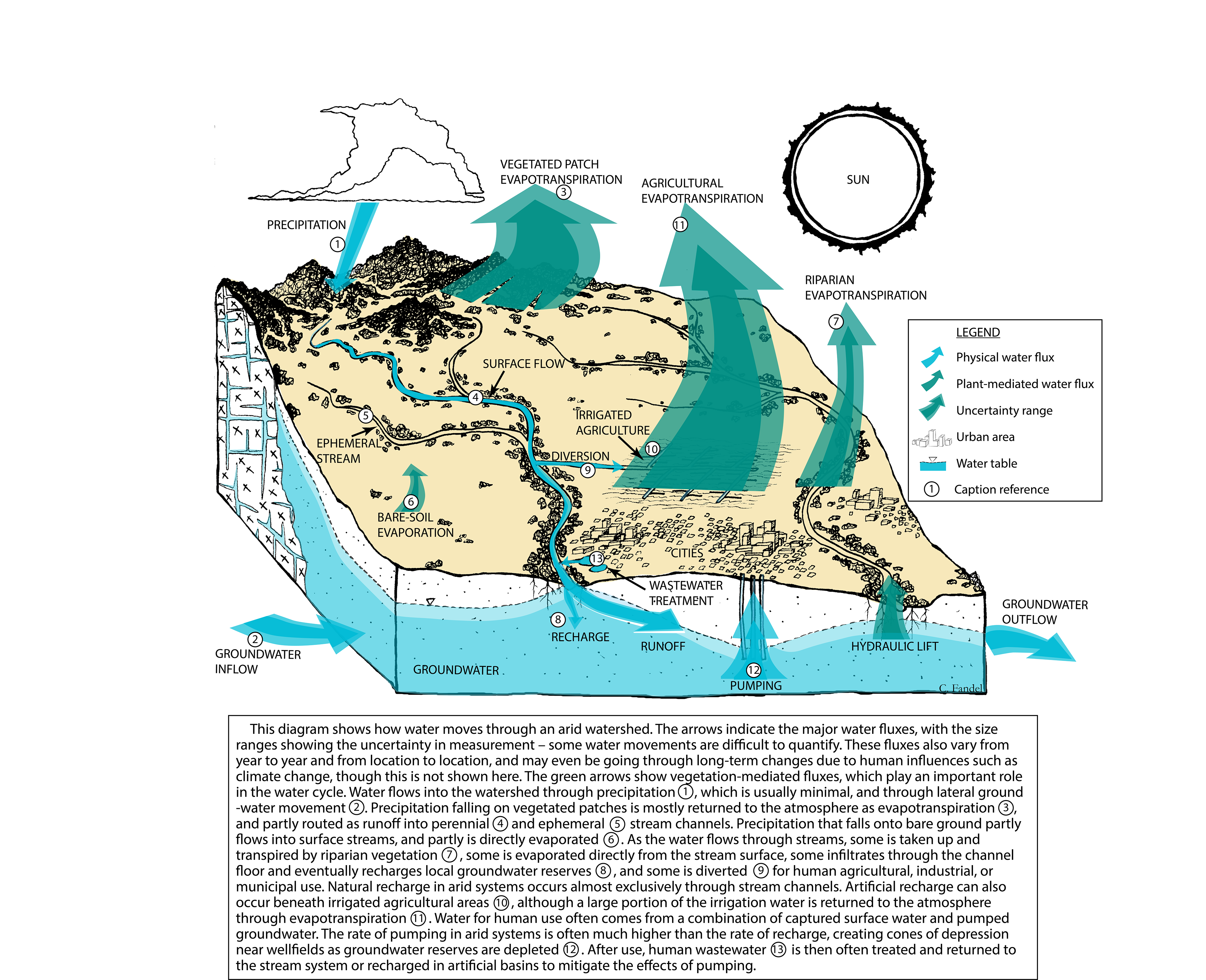

Arid watersheds behave significantly differently than humid watersheds, but most water cycle diagrams only depict highly-vegetated, humid examples. This figure is published in:
Fandel C, Breshears D, & McMahon E, 2018. Implicit assumptions of conceptual diagrams in environmental science and best practices for their illustration. Ecosphere 9 (1):e02072
